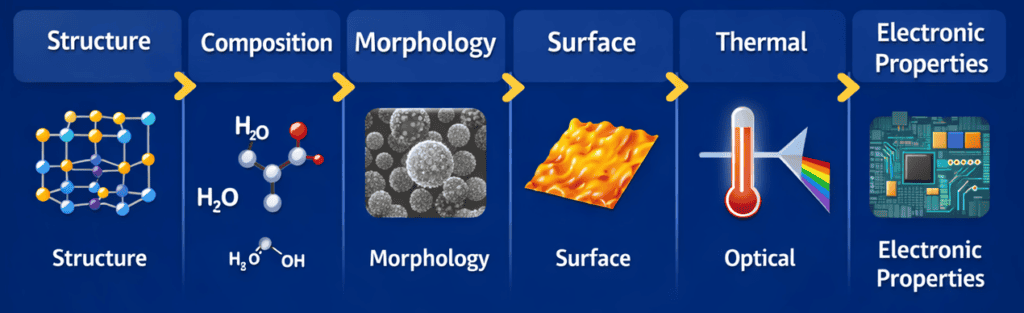

In materials research, synthesizing a material is only the beginning; the real science starts with understanding what has been synthesized. Material characterization techniques provide the essential link between synthesis and application by revealing a material’s structure, composition, surface features, and properties. From confirming crystal phases to evaluating optical, thermal, and surface behaviour, characterization tools form the backbone of experimental validation. For researchers, especially PhD scholars, selecting and interpreting the right techniques is important for producing high-quality, publishable research. This post presents a clear and structured guide to material characterization techniques, from basic to state-of-the-art, making complex analysis easier to understand and apply in real research scenarios.
Table of Contents
Why Material Characterization Techniques are Essential
Material characterization helps to:
- Confirm phase formation and crystal structure
- Identify functional groups and bonding
- Understand surface morphology and particle size
- Quantify elemental composition and oxidation states
- Evaluate surface area and porosity
- Assess thermal stability and decomposition behaviour
- Study optical, electronic, and luminescent properties
In research publications, characterization is not optional; it is mandatory evidence.
How to Choose the Right Material Characterization Techniques
Choosing right material characterization techniques should never be random or based on what instruments are easily available, instead check for the techniques really matches with your research question.
1. What did you synthesize or prepare?
- Crystalline material → XRD
- Polymer / biomaterial → FTIR, DSC, TGA
- Nanomaterial → SEM, TEM, BET
2. Do you need to confirm structure or chemistry?
- Crystal phase → XRD
- Functional groups → FTIR, Raman spectroscopy
- Surface chemistry → XPS
3. Are surface and size important?
- Morphology and particle size → SEM, TEM
- Atomic-level defects → HR-TEM
- Surface roughness → AFM
4. Is performance related to surface area or porosity?
- Adsorption, catalysis, energy storage → BET, pore size analysis
5. Are optical or electronic properties involved?
- Band gap and absorption → UV–Vis
- Charge recombination and defects → PL
6. Will the material face heat or processing conditions?
- Thermal stability → TGA
- Phase transitions → DSC
Material Characterization Techniques
Structural Characterization Techniques
1. X‑Ray Diffraction (XRD)
XRD identifies crystalline phases and crystal structure. By measuring diffraction angles, XRD gives the lattice parameters and phase composition (each phase has a unique “fingerprint” in the diffraction pattern). It can also measure crystallite size, strain, and preferred orientation of grains.
Purpose:
Crystal structure and phase identification
What it tells you:
- Crystalline or amorphous nature
- Phase purity
- Lattice parameters
- Crystallite size (Scherrer equation)
- Preferred orientation
Significance:
- Confirms whether the desired material is formed
- Essential for ceramics, nanoparticles, catalysts, and crystalline solids
Chemical Bonding & Functional Group Analysis
1. Fourier Transform Infrared Spectroscopy (FTIR)
The FTIR spectrum shows absorption peaks at characteristic vibrational frequencies, allowing identification of molecular components and chemical composition in a sample. Probes chemical bonds and functional groups. It is widely used to detect specific bond types (e.g. C=O, OH) in organic and inorganic materials.
Purpose:
Identification of functional groups
What it tells you:
- Chemical bonds (O–H, C=O, N–H, Si–O, etc.)
- Surface functionalization
- Presence of impurities
Significance:
- Confirms chemical structure
- Widely used in polymers, biomaterials, and composites
2. Raman Spectroscopy
Raman spectroscopy provides a “chemical fingerprint” through vibrational modes of a material. When a laser illuminates the sample, the scattered light shifts in wavelength according to the vibrational energies of the molecular bonds. Each material produces unique Raman peaks, enabling phase identification and compositional analysis complementary to FTIR.
Purpose:
Molecular vibrations and crystal quality
What it tells you:
- Bonding and symmetry
- Structural disorder
- Phase transitions
- Carbon structure (graphene, CNTs, biochar)
Significance:
- Complementary to FTIR
- Non‑destructive and highly sensitive
Morphological & Microstructural Analysis
1. Scanning Electron Microscopy (SEM)
SEM produces high-resolution images of a sample’s surface. SEM scans a focused electron beam across the sample and detects emitted electrons. It reveals surface topography and morphology at the microscale (down to a few nanometers). SEM can be coupled with an energy-dispersive X-ray detector (EDS) which gives the elemental composition of localized regions.
Purpose:
Surface morphology and particle shape
What it tells you:
- Surface texture
- Grain size and shape
- Agglomeration
- Fracture behaviour
Significance:
- Visual confirmation of microstructure
- Crucial for nanomaterials and composites
2. High‑Resolution Transmission Electron Microscopy (HR‑TEM)
TEM images the internal structure of ultra-thin samples at near-atomic resolution. A high-energy electron beam is transmitted through a thin specimen to form an image. TEM can reveal lattice fringes, defects, grain boundaries, and crystallography. Selected-area electron diffraction (SAED) in TEM provides crystal structure and phase information at the nanoscale.
Purpose:
Atomic‑scale imaging
What it tells you:
- Lattice fringes
- Inter‑planar spacing
- Defects and interfaces
- Particle size at nanoscale
Significance:
- Gold standard for nanomaterial characterization
- Confirms crystallinity at atomic level
3. Atomic Force Microscopy (AFM)
AFM maps surface topography in 3D at the nanometer scale by “feeling” the surface with a sharp probe. AFM can also measure local mechanical, electrical or other properties (e.g. stiffness, conductivity) depending on mode. It is widely used to visualize nanoscale surface texture, roughness, and even single molecules on surfaces.
Purpose:
Surface roughness and nano‑mechanical properties
What it tells you:
- Surface roughness
- 3D surface profile
- Nanoscale features
- Particle size distribution
Significance:
- High resolution imaging
- Works without vacuum
- Measures local properties
- Suitable for nanomaterials
Elemental & Compositional Analysis
1. Energy Dispersive X‑ray Analysis (EDAX / EDS)
EDAX / EDS is an elemental analysis technique commonly attached to SEM or TEM systems. It measures the characteristic X-rays emitted from a material when it is bombarded with a high-energy electron beam. Each element emits X-rays at specific energies, allowing identification and quantification of the elements present in the sample. EDS provides qualitative and semi-quantitative elemental composition, often from localized regions. It is widely used for compositional analysis, impurity detection, and elemental mapping in materials research.
Purpose:
Elemental composition
What it tells you:
- Presence of elements
- Weight and atomic percentage
- Elemental mapping
Significance:
- Confirms material composition
- Often coupled with SEM or TEM
2. X‑ray Photoelectron Spectroscopy (XPS)
XPS is a surface-sensitive chemical analysis technique (probing <5 nm depth), identifies the elements present on a surface of the material and their chemical states. It works by irradiating the surface with X-rays and measuring the kinetic energy of emitted electrons. From the electron binding energies, XPS quantifies elemental composition and distinguishes oxidation states (e.g. Fe²⁺ vs Fe³⁺).
Purpose:
Surface chemical states
What it tells you:
- Elemental composition (surface‑specific)
- Oxidation states
- Chemical environment
Significance:
- Advanced technique for surface chemistry
- Essential for catalysts and functional materials
Surface Area & Porosity Analysis
1. Brunauer–Emmett–Teller (BET) Analysis
BET Surface Area determines the specific surface area and porosity of powders and porous materials. By measuring gas adsorption (typically N₂) at low temperatures, BET analysis calculates the total surface area (including pores) and pore-size information. Surface area strongly influences reactivity, catalyst effectiveness, and sintering behavior.
Purpose:
Surface area and porosity
What it tells you:
- Specific surface area (m²/g)
- Pore volume
- Pore size distribution
Significance:
- Critical for adsorption, catalysis, and energy materials
- Higher surface area often means better performance
Optical & Electronic Properties
1. UV–Visible Spectroscopy (UV‑Vis)
UV-Vis Spectroscopy measures optical absorption of a material in the ultraviolet and visible range. It is used to analyze electronic transitions (e.g. band gaps in semiconductors or conjugation in molecules). By measuring absorbance vs. wavelength, UV–Vis can determine band gap energy, concentration of colored species (via Beer–Lambert law), and optical properties of thin films or solutions.
Purpose:
Optical absorption behaviour
What it tells you:
- Absorption edge
- Band gap energy
- Electronic transitions
Significance:
- Widely used in semiconductors and nanomaterials
- Helps in photocatalytic studies
2. Photoluminescence (PL) Spectroscopy
PL spectroscopy excites a sample with UV/visible light and measures emitted light as the material relaxes. PL reveals defects, impurity states, and band-gap energies through emission peaks. It is especially useful for semiconductors and nanomaterials, where emission spectra indicate crystal quality and electronic structure. (E.g. a sharp PL peak indicates a well-defined band gap, while additional peaks can indicate defects.)
Purpose:
Emission properties
What it tells you:
- Recombination of charge carriers
- Defect states
- Emission efficiency
Significance:
- Important for optoelectronic and sensing applications
Thermal Characterization Techniques
1. Thermogravimetric Analysis (TGA)
TGA measures the mass change in a sample as it is heated under controlled atmosphere. TGA reveals thermal stability and composition. For example, loss of mass indicates decomposition, moisture loss, or oxidation steps. The TGA curve (mass vs. temperature) can show multiple steps corresponding to different components. It’s commonly used to determine decomposition temperatures, organic/inorganic content, and to study polymer stability.
Purpose:
Thermal stability
What it tells you:
- Weight loss behaviour
- Decomposition temperature
- Moisture and volatile content
Significance:
- Essential for polymers, composites, and biomaterials
2. Differential Scanning Calorimetry (DSC)
DSC is a thermal analysis technique that measures the heat flow into or out of a material as it is heated, cooled, or held at constant temperature. It works by comparing the heat required to raise the temperature of a sample with that of an inert reference under identical conditions. Any difference in heat flow indicates thermal events such as melting, crystallization, glass transition, or phase transformations. DSC is widely used to determine transition temperatures, enthalpy changes, crystallinity, and thermal stability of polymers, metals, pharmaceuticals, and nanomaterials.
Purpose:
Thermal transitions
What it tells you:
- Glass transition temperature
- Melting and crystallization behaviour
- Heat flow
Significance:
- Helps understand material processing and stability
Mechanical & Other Advanced Techniques
- Zeta Potential Analysis: Surface charge and colloidal stability
- XRF: Bulk elemental analysis
- Non-magnetic Resonance (NMR): Molecular structure and dynamics
- SAXS/WAXS: Nano‑scale structural information
Material characterization is the foundation that transforms experimental work into credible scientific research. By systematically linking structure, composition, morphology, and properties, researchers can confidently explain material performance and functionality. The right choice of characterization techniques strengthens research quality, reproducibility, and publication impact. Rather than using every available instrument, researchers should focus on meaningful, goal-oriented analysis. Mastering characterization is not just a technical skill; it is a critical research mindset that defines strong and impactful science.
